DCS push button interface, 2-gang
Price system (PS) not equal to 1, 14 = reduced discount.
Note: For legal reasons, some products are not available in certain countries.
Price system (PS) not equal to 1, 14 = reduced discount.
Note: For legal reasons, some products are not available in certain countries.
Necessary accessories
One of the following items:
Wohnungsstationen
Optional accessories
Systemgerät Türkommunikation
Features
- The DCS button interface, 2-gang is used to implement a zero-voltage button signal on the Gira door communication bus.
- The DCS button interface features two separate inputs for the connection of zero-voltage buttons.
- The inputs can either be used to trigger a switching action (e.g. switching lights) via a switching actuator or flush-mounted switching actuator, or they can be assigned to a home station.
- The DCS button interface is intended for installation in a device box behind a conventional button.
Technical data
| Power supply | DC 26 V ± 2 V (by 2-wire bus) |
| Ambient temperature | -5 °C to +50 °C |
| Connections | |
| 2-wire bus | 2 x plug terminal |
| Number of inputs | 2 |
| Dimensions | |
| W x H x D | 43 x 28 x 15 mm |
Notes
- The button is connected using a 3-wire, approx. 20 cm long connection cable. This connection cable can be extended to a maximum of 5 m.
- When the button interface is assigned to a home station, the two inputs function differently:Input 1triggers a floor call. This input is required when only a 2-wire line is available to connect a home station incl. floor-call button (e.g. when retrofitting an existing door station).Input 2triggers a door call. This input is required if the automatic door opener for the home station is to be triggered using a mechanical button.
Dimensions
| Width | 28.00 mm |
| Height | 43.00 mm |
| Depth | 15.00 mm |
More links
Gira door communication configurator
The Gira door communication system enables systems of different types and sizes: from detached houses and apartment blocks to entire residential complexes. From simple audio and video systems to integration into a computer network. The Gira door communication configurator is a user-friendly online tool that makes the individual configuration of such systems a pleasure for house owners and administrators, but also for tradesmen and other professionals.
More

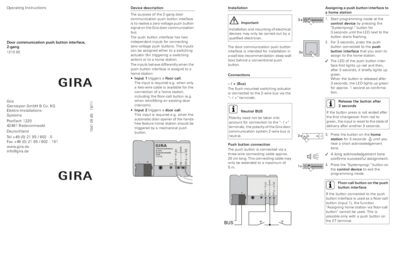

Operating instructions
